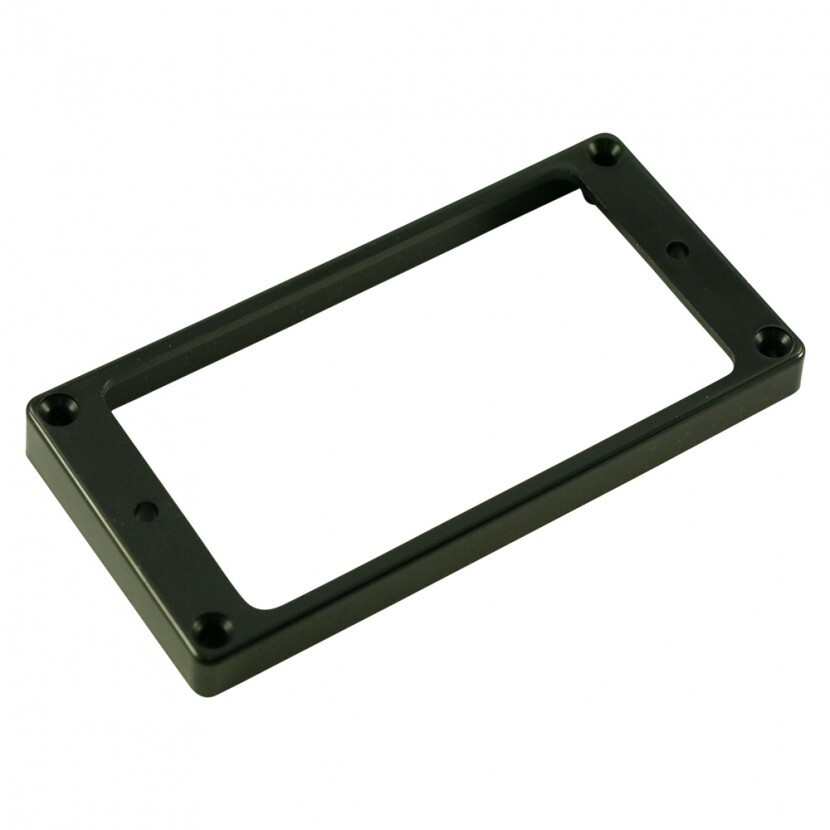

WD Plastic Humbucker Pickup Mounting Ring, Flat; Black
Low in-store inventory, may be subject to change.
High Arched:
This is a tall plastic humbucker ring with an arched radius, designed for usage in the bridge position arched or carved top guitars. This mounting ring is not an exact Gibson® spec replacement ring. It has slightly larger exterior dimensions with an overall (top and bottom) arched design and slightly different mounting hole locations.
High Arched:
- Height on side facing the bridge = 11/32 in. (8.84mm)
- Height on the side facing the neck = 5/16in. (7.92mm)
- Radius of arch = 16 in.
- Pickup Mounting Screw Ctr to Ctr = 3 5/64 in. (78.25mm)
- Ring Mtg Screw Loc. = 3 5/16 in. (84mm)L X 1 29/64 in. (36.89mm)W
- Interior Cutout size = 2 49/64 in. (70.16mm) L X 1 17/32 in. (38.8mm) W
- Exterior Ring Dimensions = 3 39/64 in. (91.9mm) L X 1 51/64 in. (45.87mm) W
